Stel: Integrated Assembly Cells for Shock Absorbers
Complete production solutions from roll closing to end-of-line testing
Supporting the production of world-class shock absorbers
Stel engineers and delivers assembly cells in which each station is integrated into a single, coordinated process.
Designed for repeatable quality, efficient cycle times, and fast changeovers, our solutions ensure reliable, high-performance shock absorber manufacturing worldwide.
Proven Experience
Over 25 years of experience in the design and delivery of shock absorber assembly systems for the
automotive industry. Our solutions are developed to meet demanding production requirements,
ensuring consistent quality, reliability, and long-term performance.
Global Installations
Systems installed in production facilities across Europe, Asia, and the Americas.
We support international manufacturers with solutions tailored to different production environments, maintaining consistent performance across locations.
Vehicle Applications
Solutions designed for the production of high-performance shock absorbers across a wide range of vehicle applications.
Our systems support different shock absorber types and production requirements, with a focus on precision, repeatability, and process stability.
Global presence
We proudly serve clients around the world, delivering top -tier customer support and unmatched quality. Our shock absorber closing machines are industry – leading —trusted by premium brands for their precision, reliability, and performance.

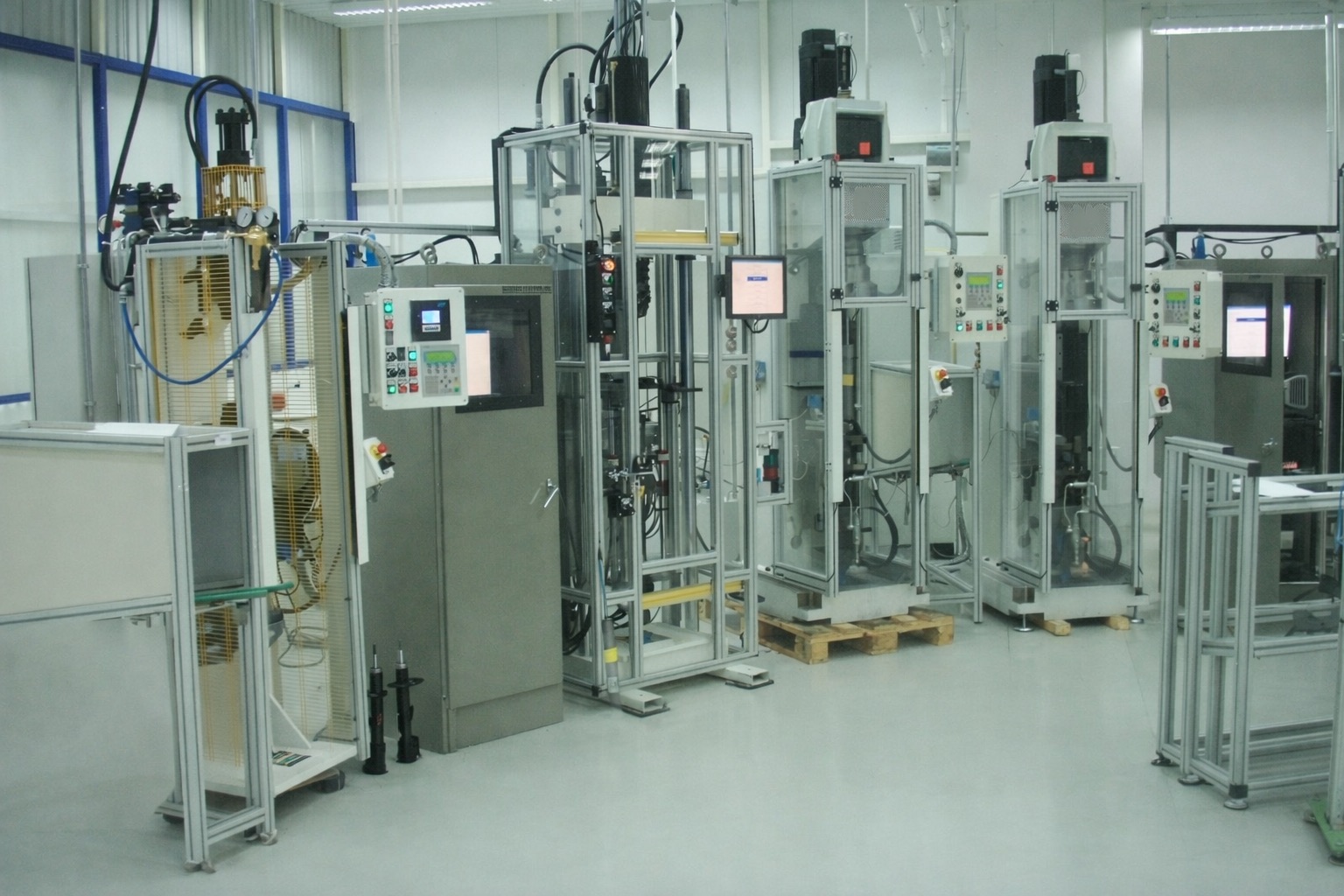

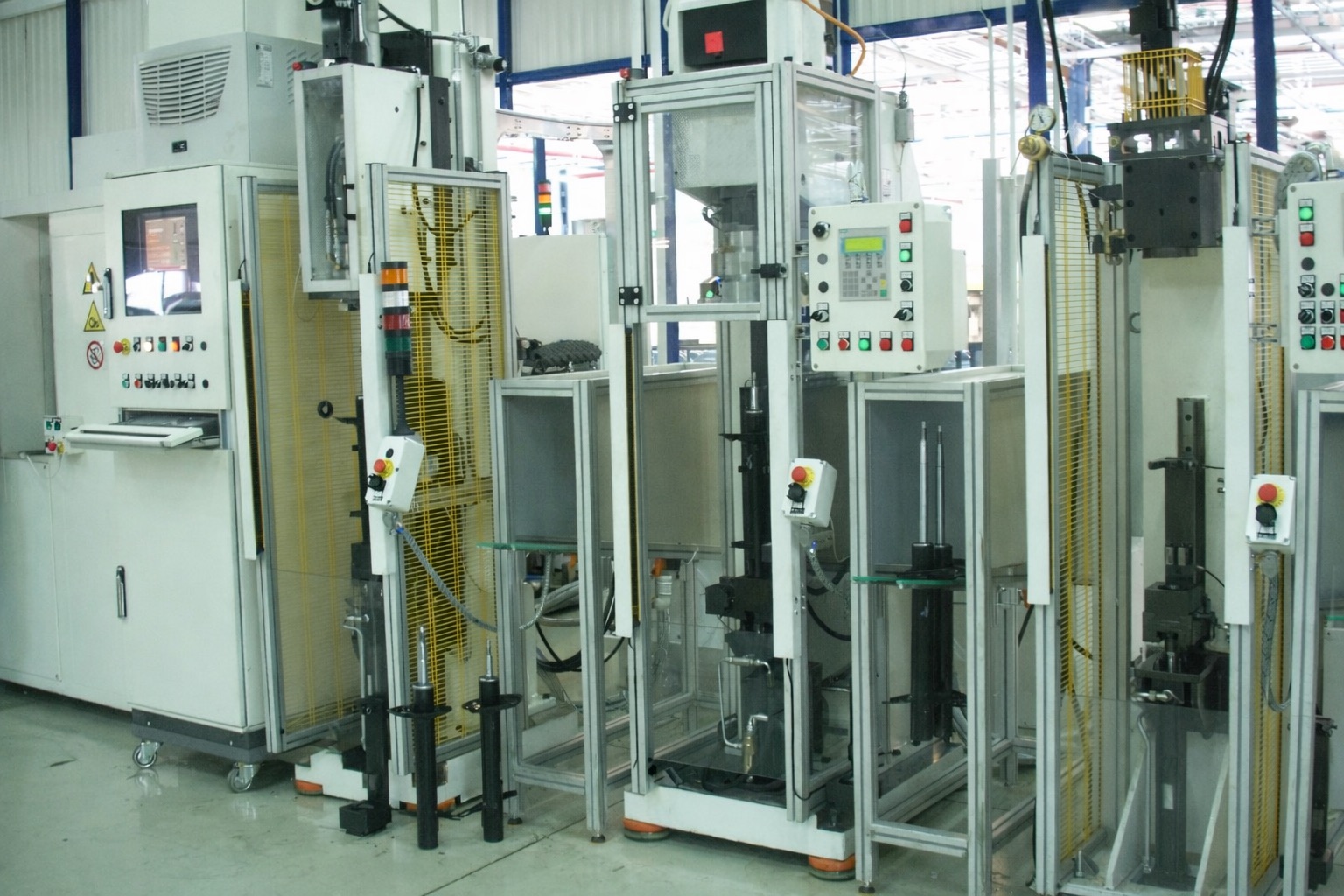

Built around your process

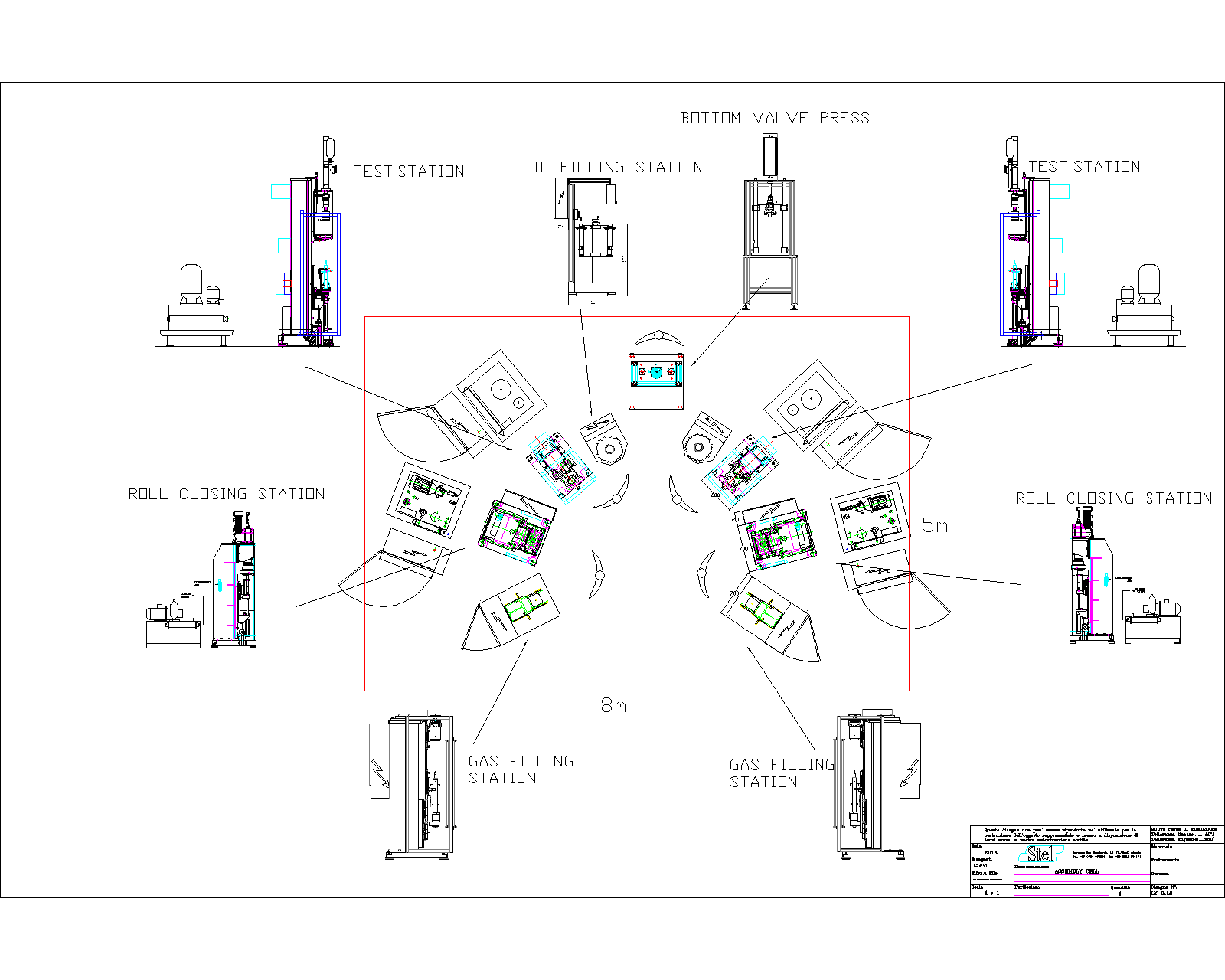

Designed around independent stations, the assembly cell can be configured to match specific production requirements while minimizing operator involvement.
Some of our stations supporting the production

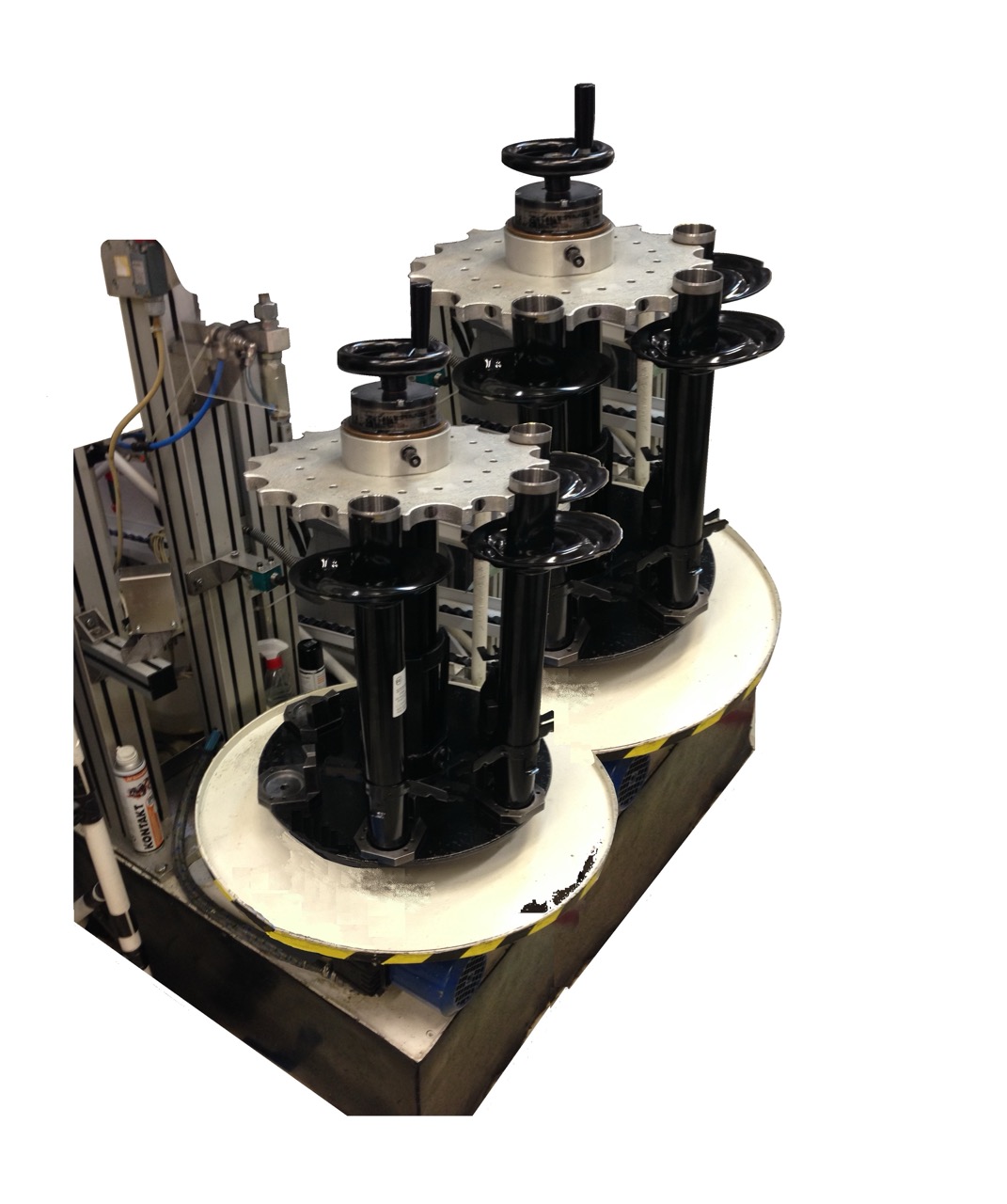

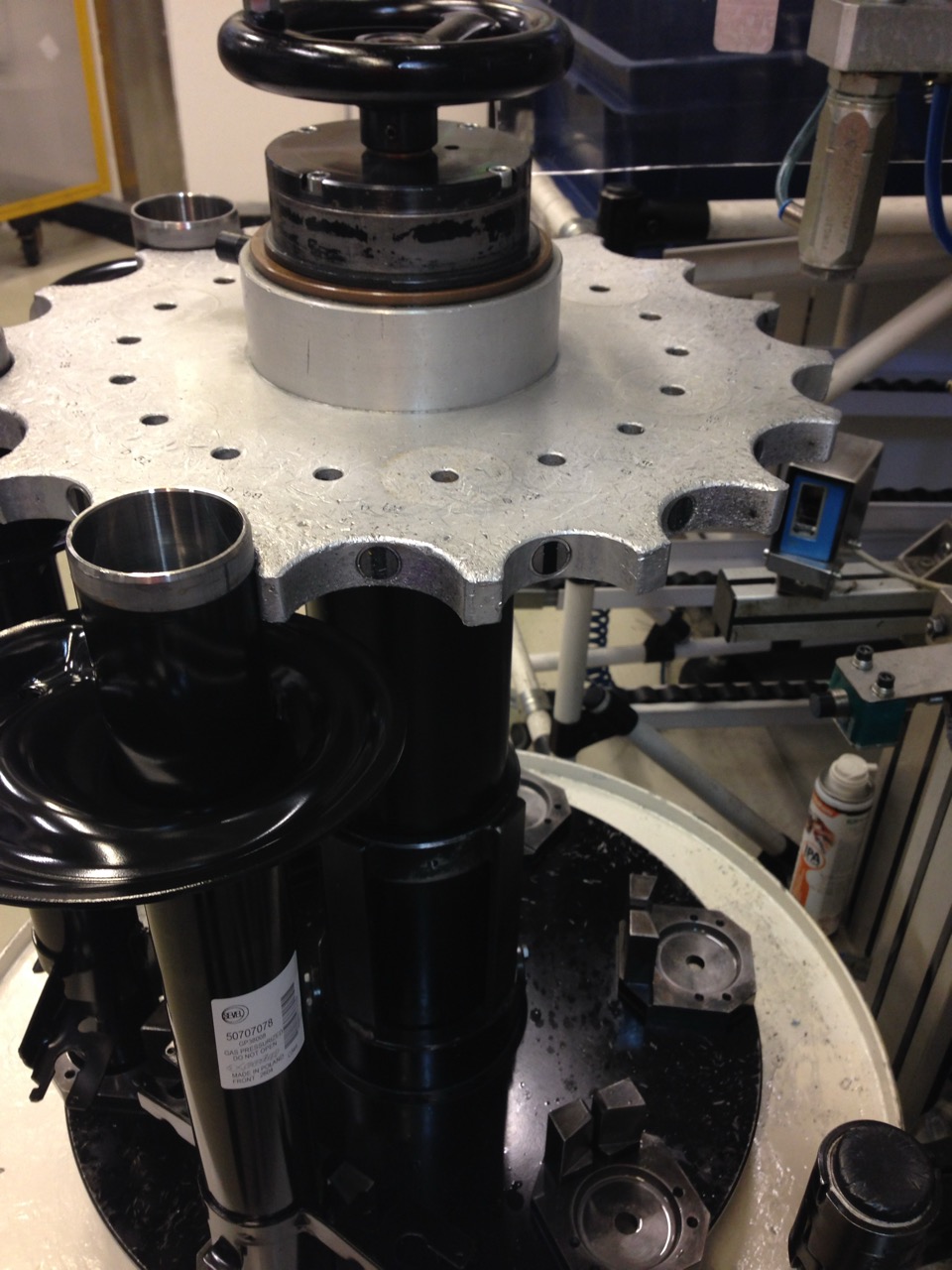

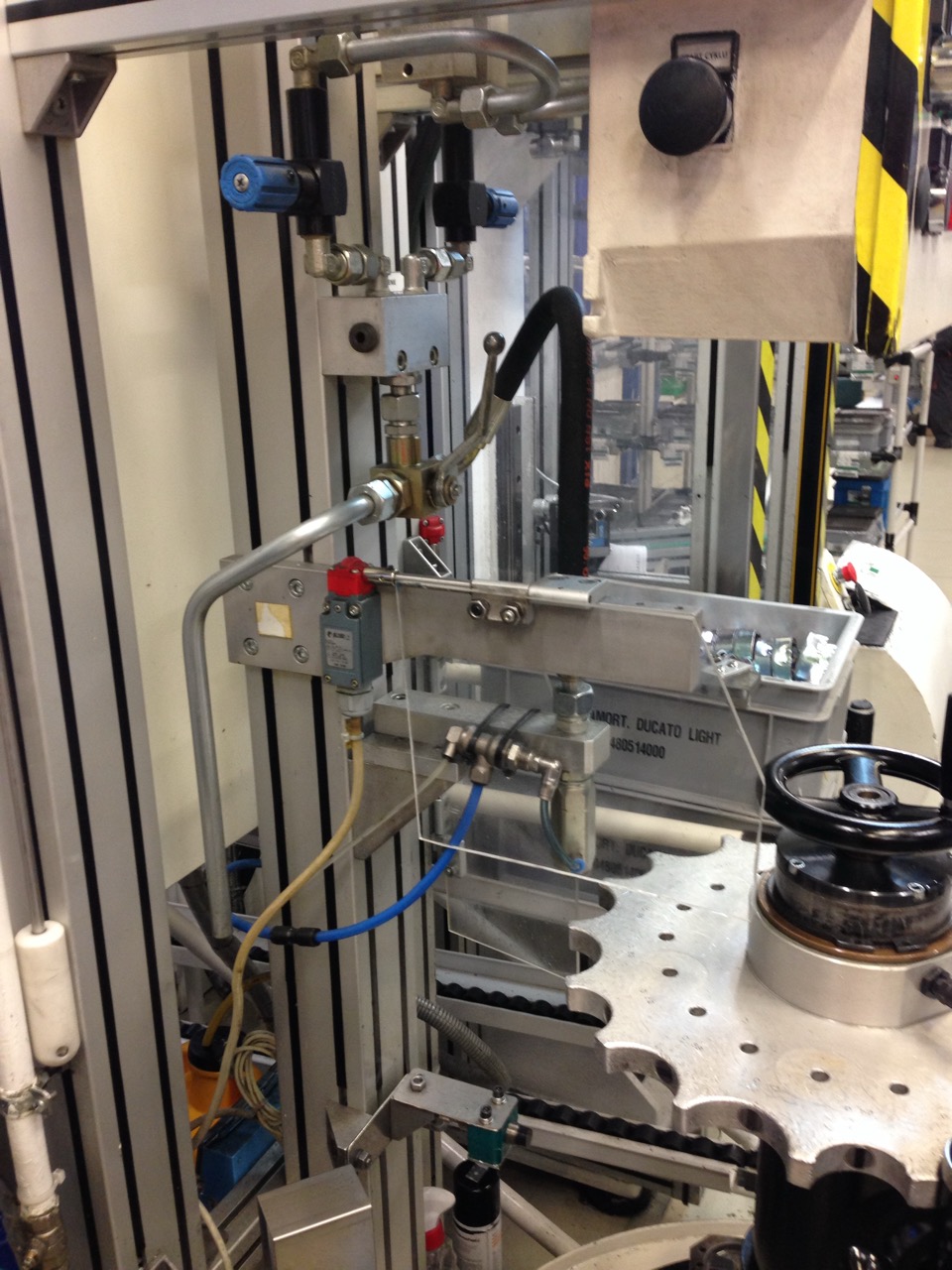

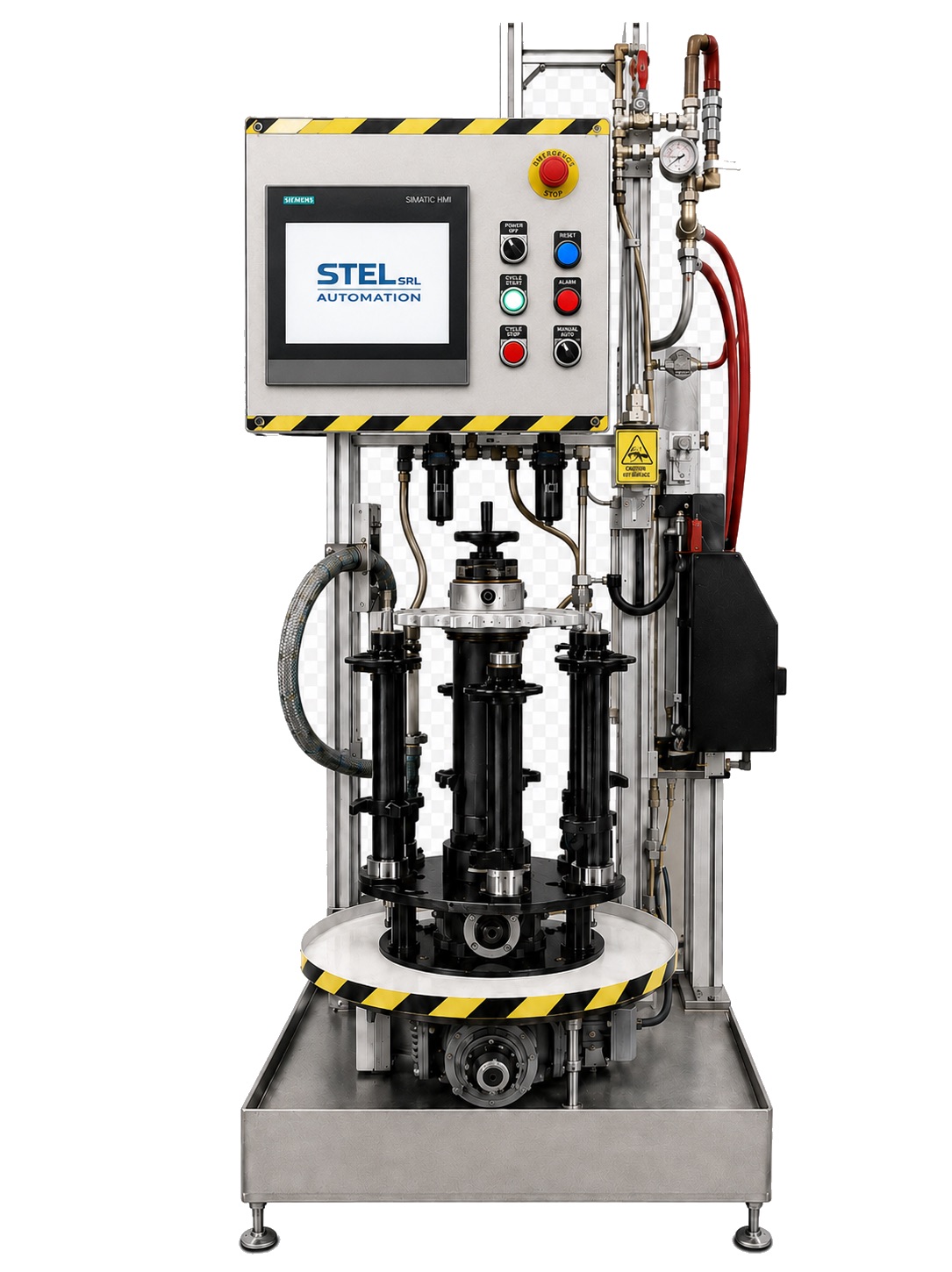

Oil filling station
Fills the shock absorber with the preset oil quantity, ensuring even distribution between the inner tube and reservoir.
- Safety compliance EN ISO 13849, PL-d
- Selectable oil type.
- Actual filling volume checked against preset value.
- Quick changeover for different diameters and lengths.

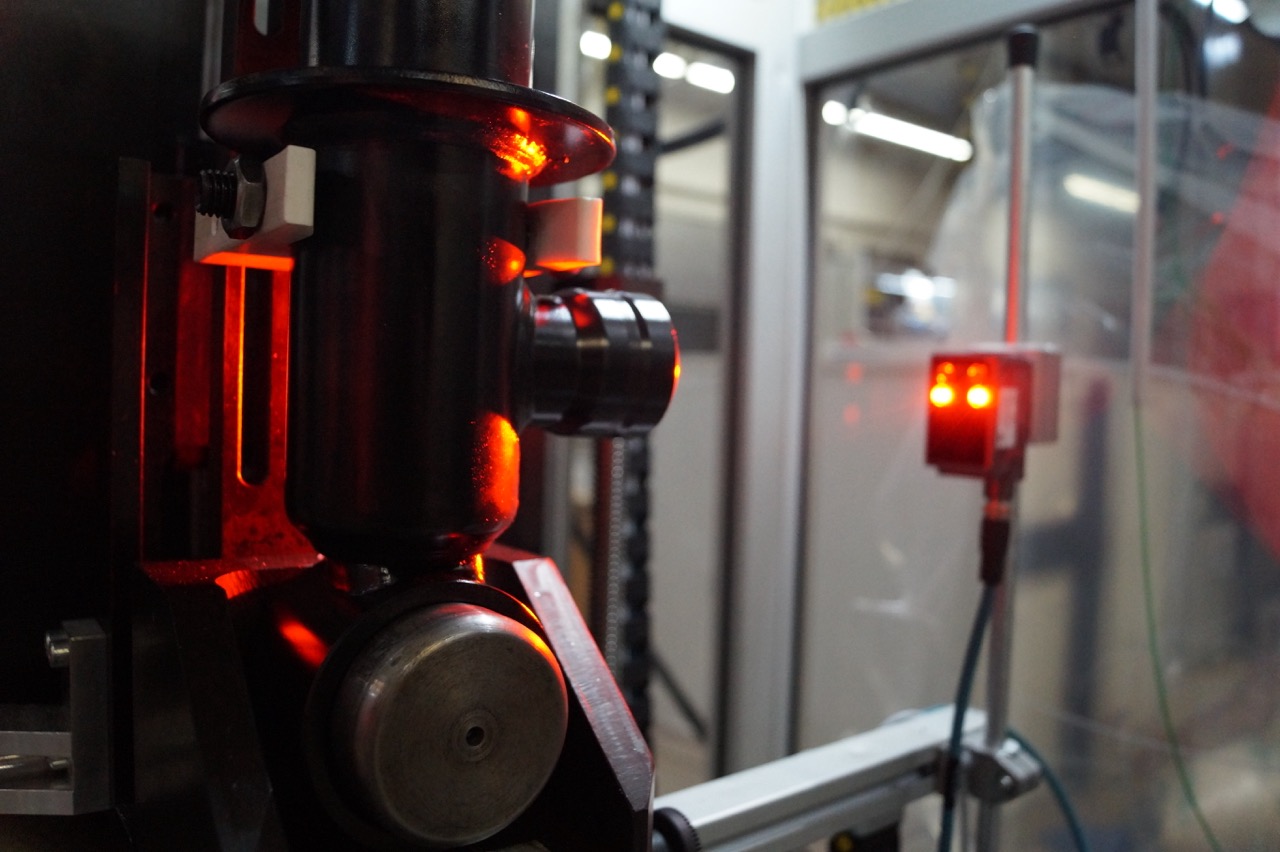

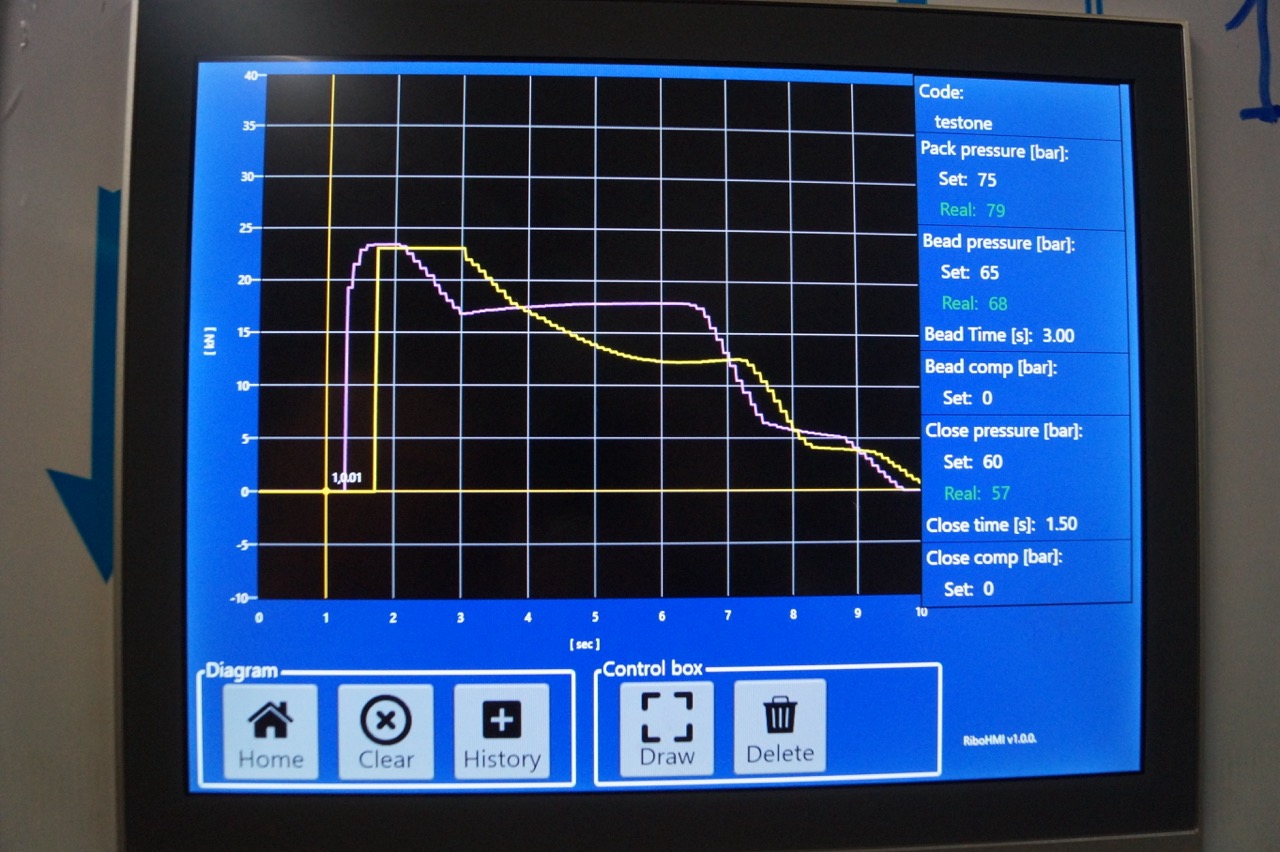

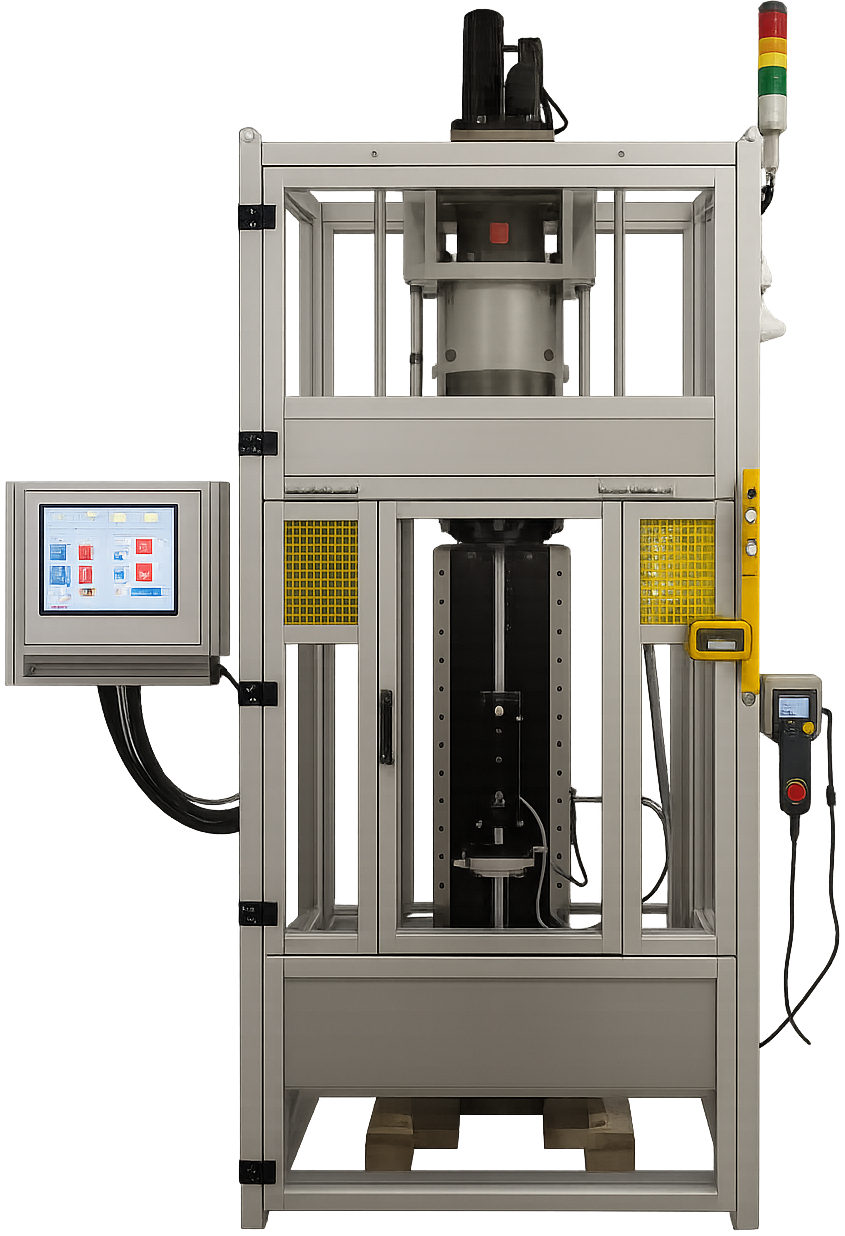

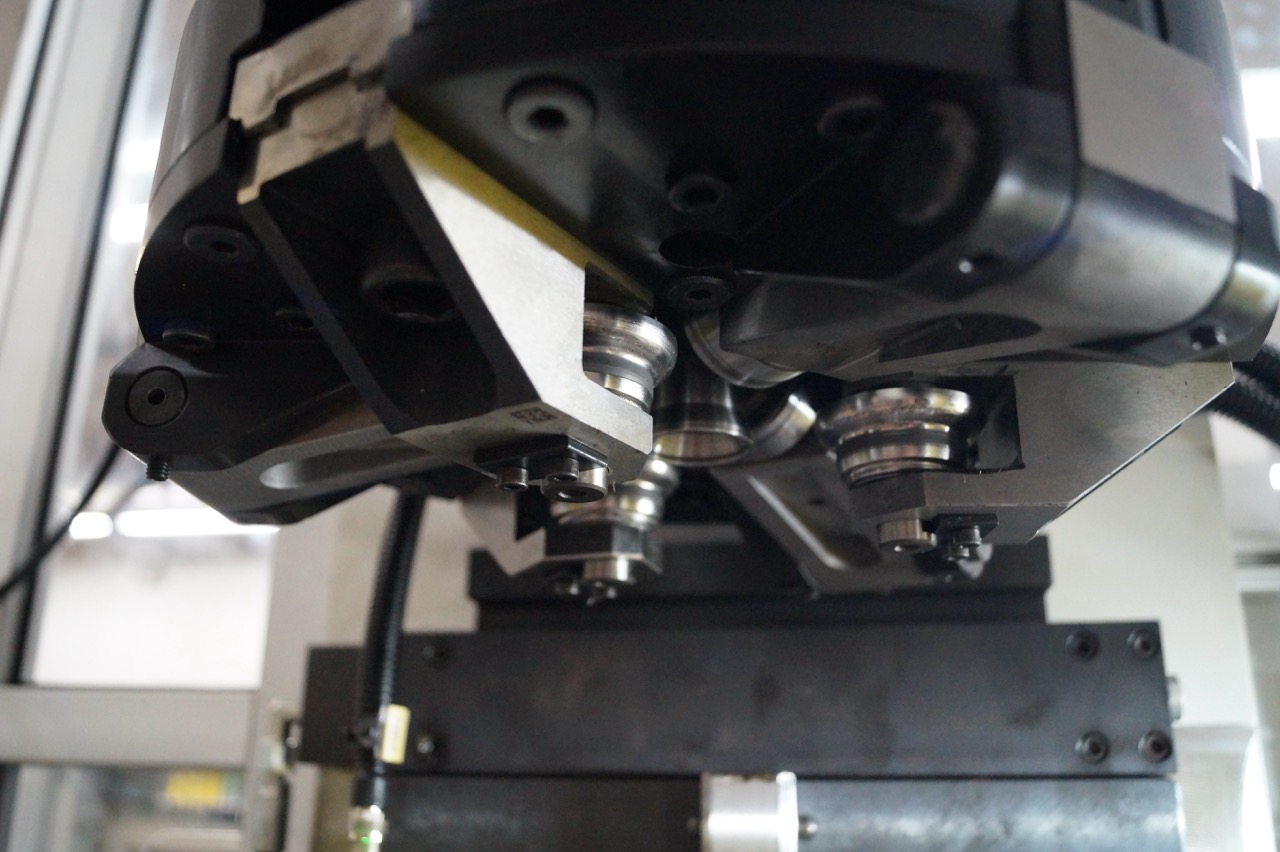

Roll closing station

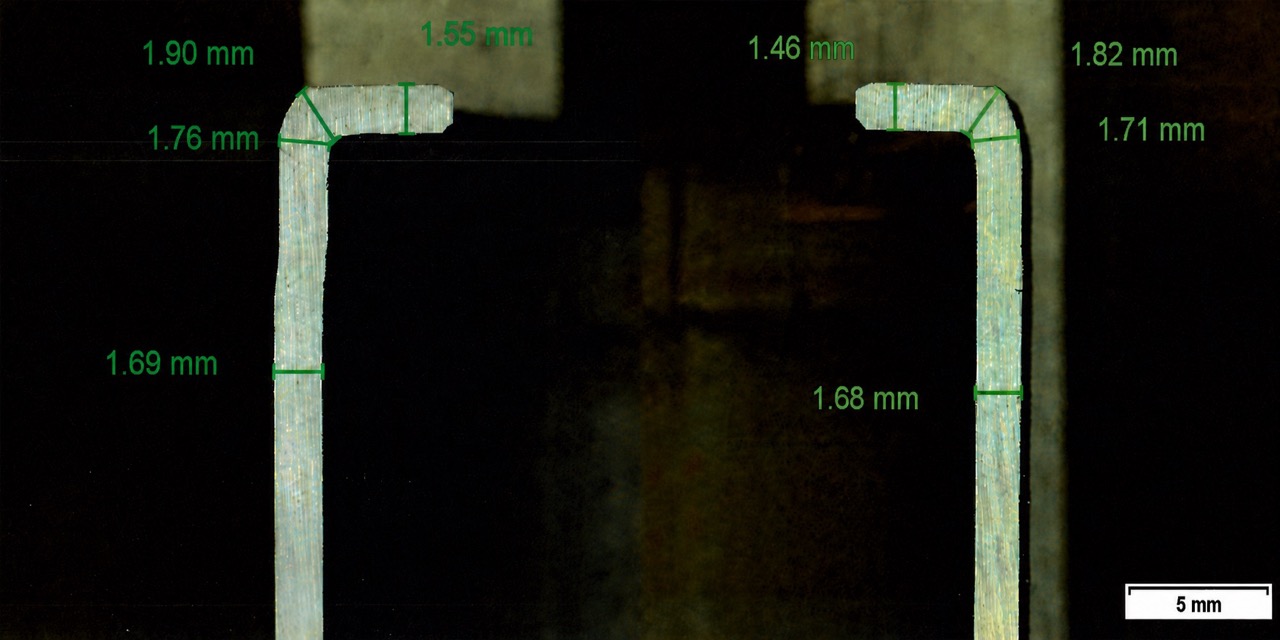

Packs the internal components and seals the shock absorber by applying a precisely controlled plastic deformation to the external wall.
The process is highly repeatable and delivers sealing quality superior to soldered or threaded closures.
An open-head variant is available for compatibility with pre-soldered rings on the rod top. The roll closing station can be manually operated or integrated into a fully automatic line with robotic handling.
- Safety compliance: EN ISO 13849, PL-d
- Guarantees residual packing force > 12 kN
- Cycle time: 12–18 seconds
- Stroke: 250 – 1000 mm
- Wall thickness: 2.5mm
- Reservoir: 34 – 70mm diameter
- Rod: up to 30mm diameter

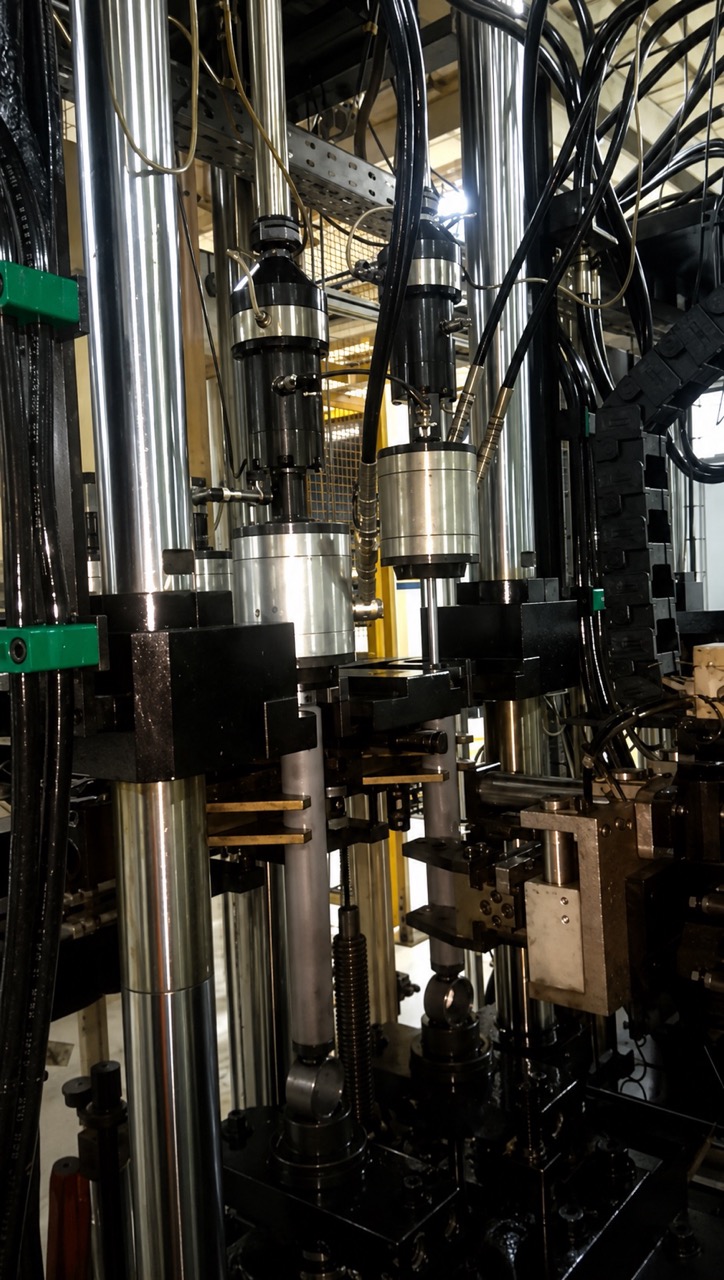

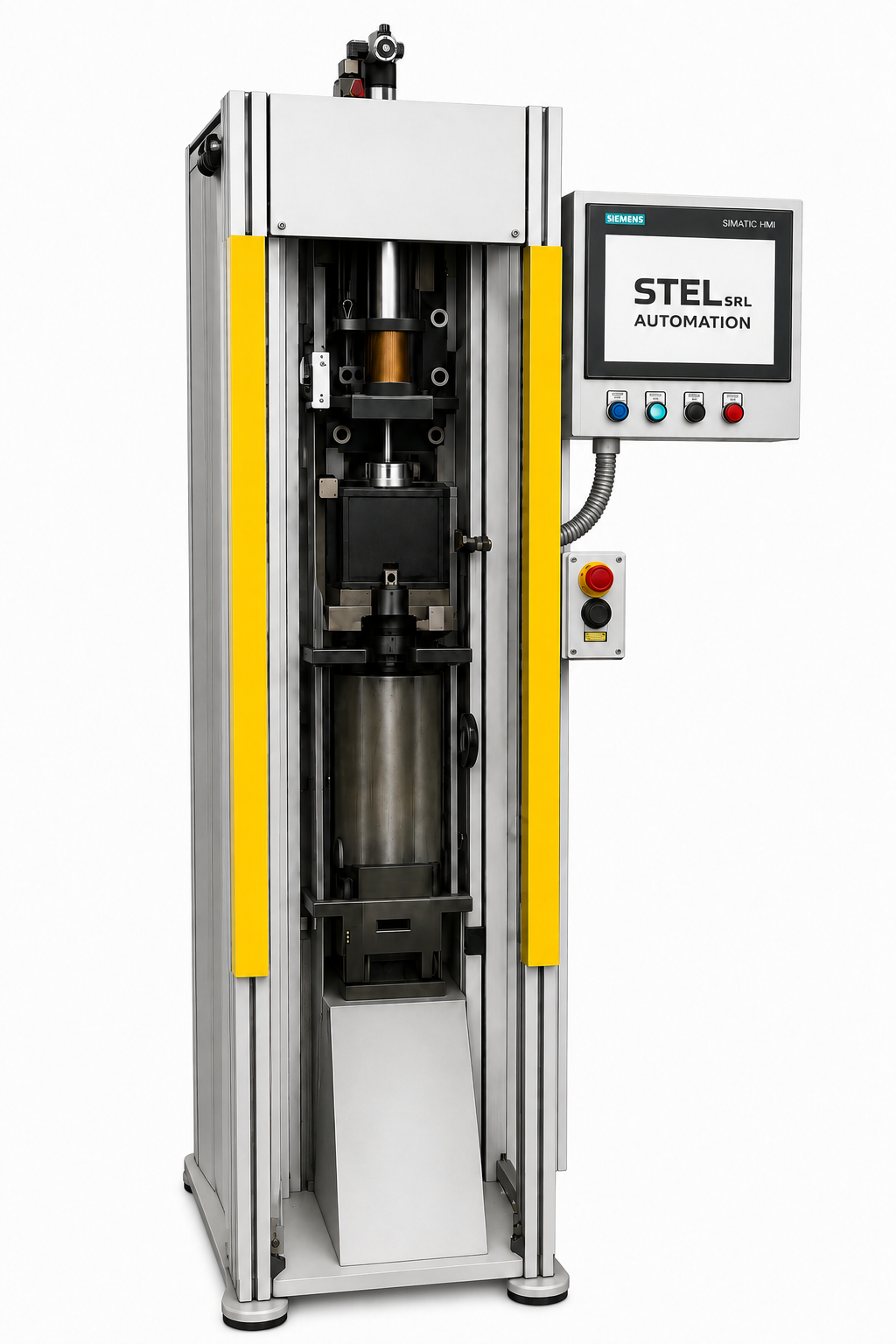

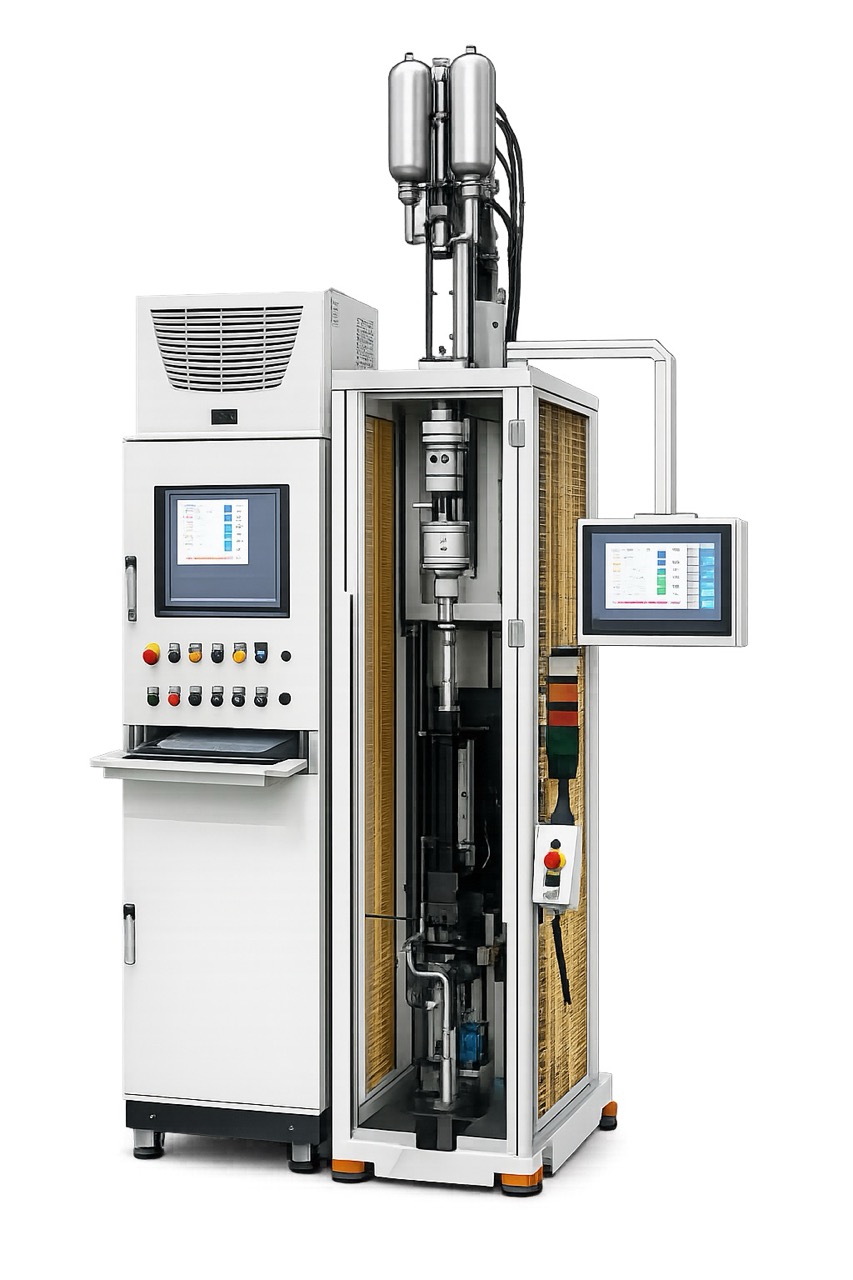

Test station

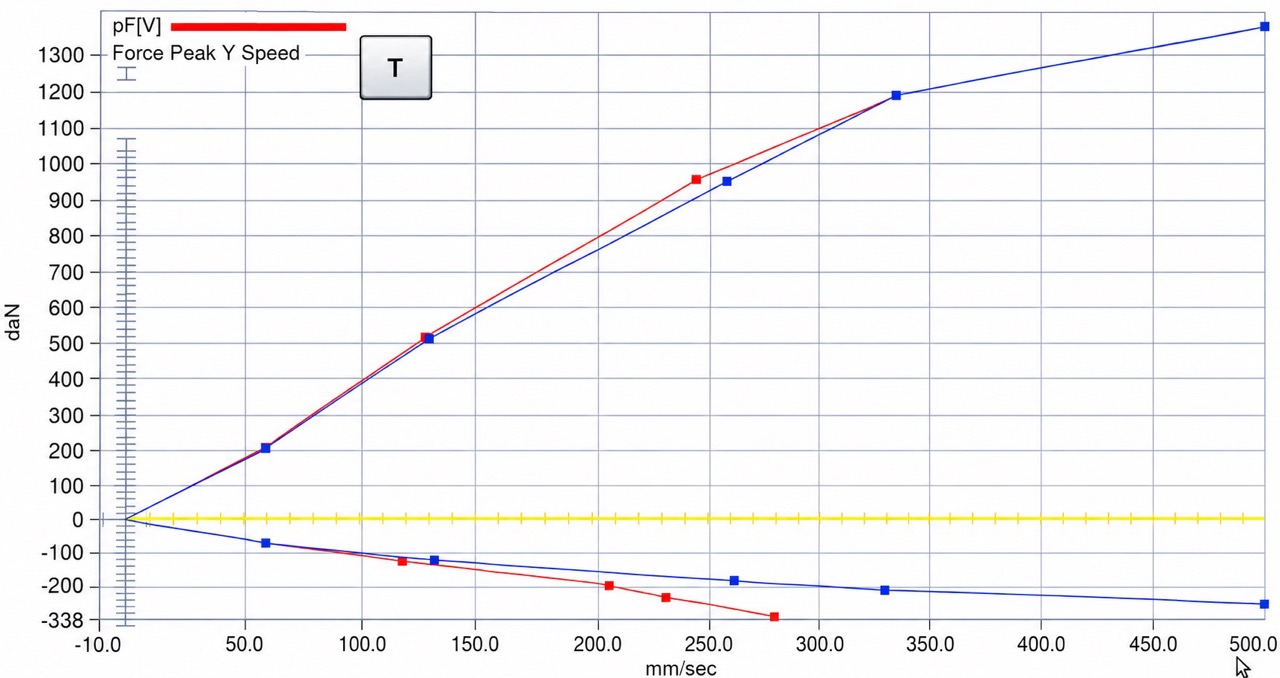

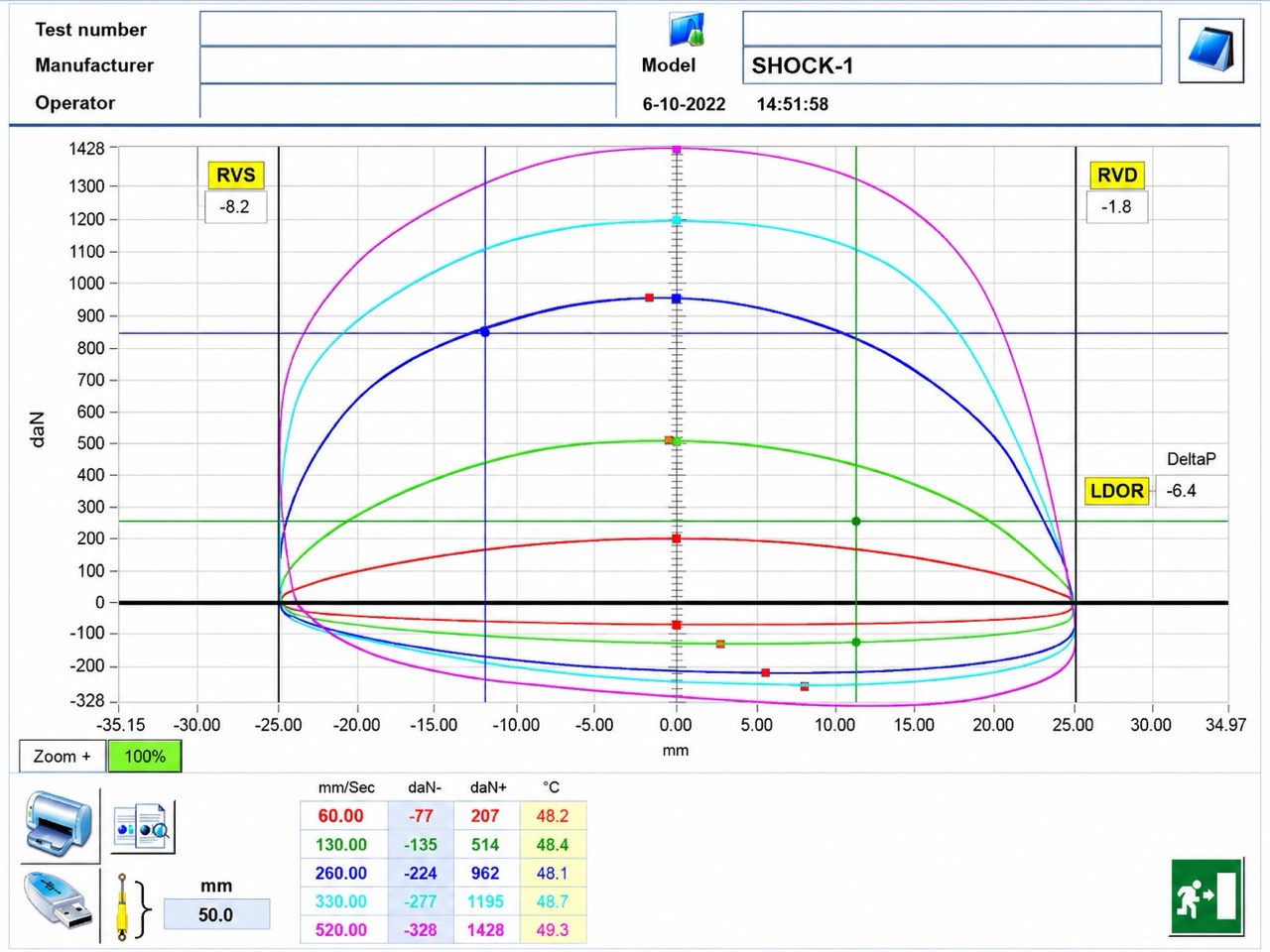

Checks that the shock absorbers behave correctly and develop the expected forces under different working conditions.
Can be used either at the end of the line or mid-process, depending on the production setup. When positioned before sealing and filling, it allows non-conformant samples to
be identified early, reducing waste by enabling recovery of reusable parts before final assembly.
The automatic clamping system with rod detection makes the station suitable for use in production, including unsupervised automatic lines with robotic handling.
Available in twin configuration, allowing two test rigs to operate independently or cooperatively.
- Safety compliance: EN ISO 13849, PL-d

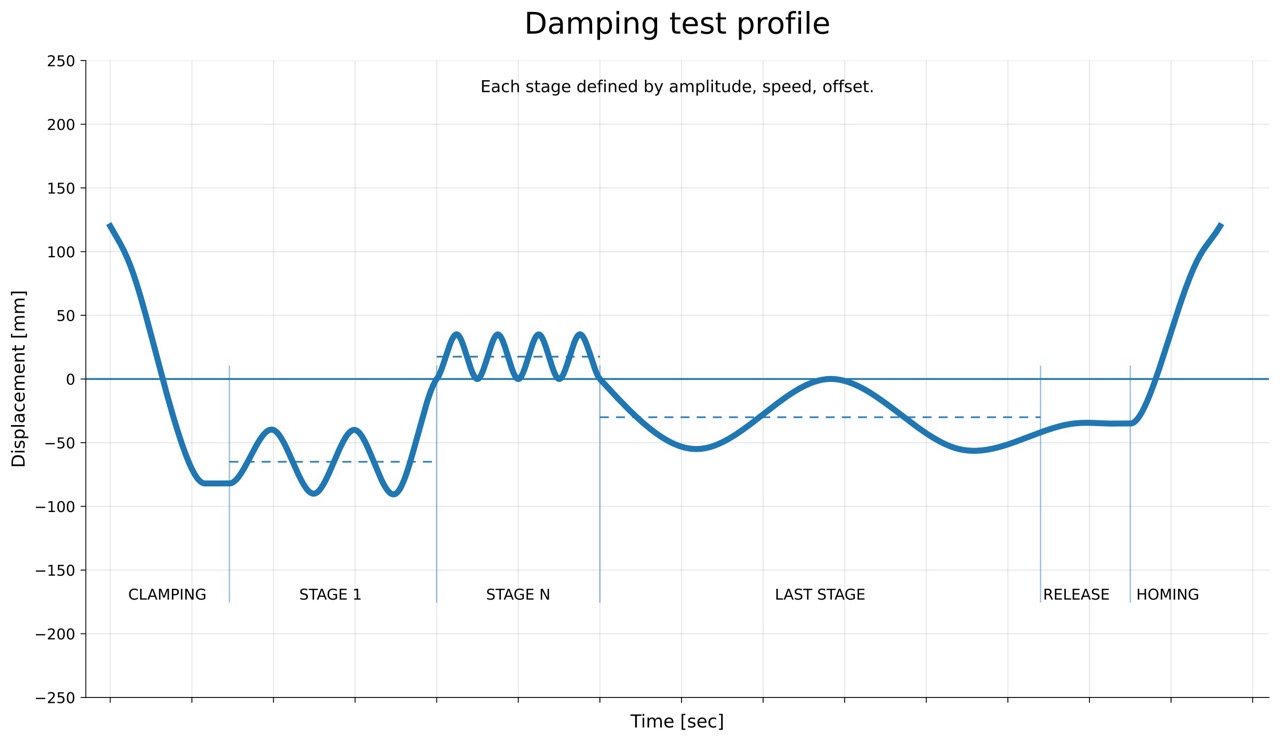

- Multiple programmable test profiles
- Test speed up to 1000mm/s
- Wide stroke range

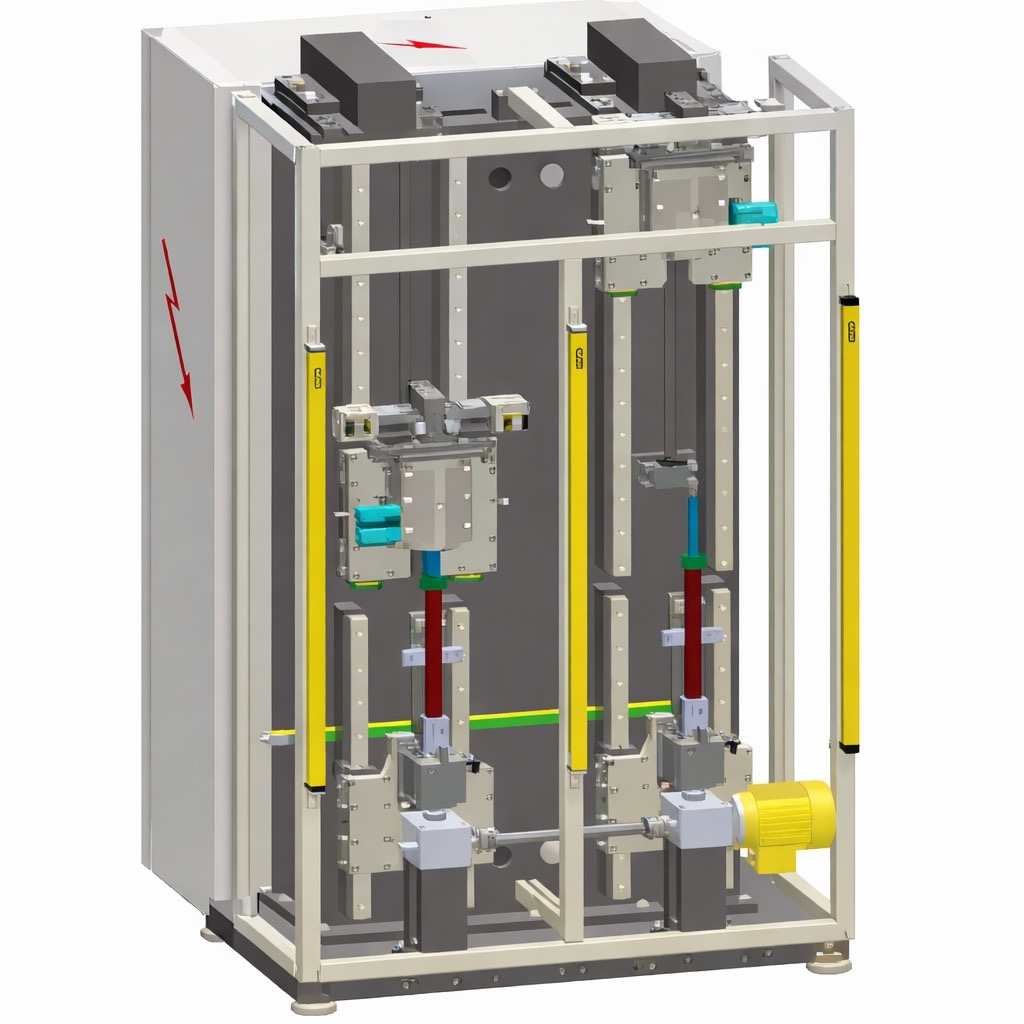

Gas filling machine
Fills the shock absorber with a pre-set amount of nitrogen and measures the reaction force at the end of the process to verify filling accuracy.
Fully electric and available in twin configuration for sharing across production cells.
- Safety compliance: EN ISO 13849, PL-d
- Measurement point: settable along the rod stroke
- Fully electric
Supporting the production of world-class shock absorbers
Let’s Bring Your Next Project to Life
We design and deliver complete assembly cells tailored to your production requirements.
We support you through the full lifecycle from pre-study and solution definition to development, commissioning, factory integration, and continuous aftersales improvements.
